Manufacturer
Samlex America
Product Narrative
SAMLEX switching power supply incorporates a advanced design in a compact and lightweight size. Fully regulated with current limiting, crowbar over-voltage and short circuit protection. Ripple is lessthan 50mV. Made to a radio size footprint of 2.5"H x 7.3"Wx 8.0"L. Internally adjustable 115V/230V*. UL and CSA approved. 3 year warranty.
Product Description

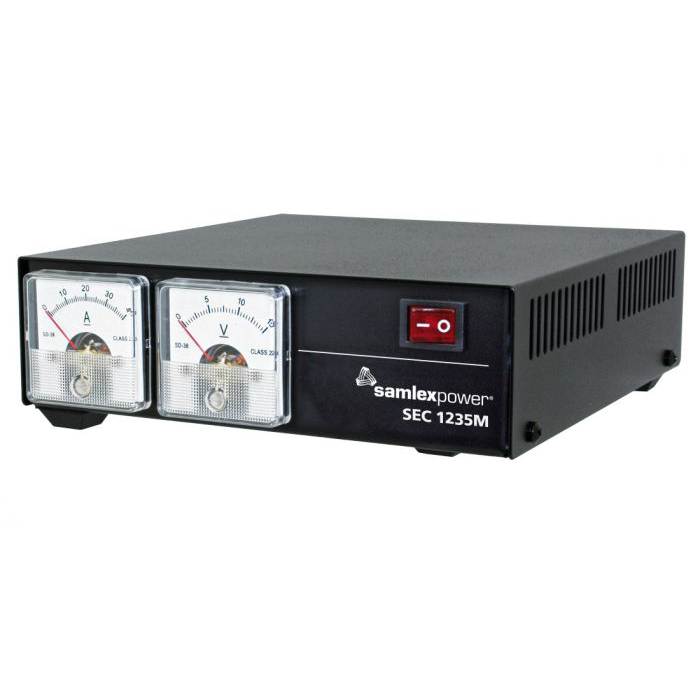

The Samlex America SEC1235M switching power supply with meters is specifically designed for use with two-way land mobile radios. This advanced switch-mode DC power supply has an internally selectable 115 or 230 VAC input for a 13.8 VDC output and 30 A continuous or 35 A intermittent current.
The desktop power supply produces clean, reliable power and is highly filtered to suppress RF interference and provide worry-free service. It is fully-regulated with current limiting, crowbar overvoltage, and short circuit protection. The DC power supply is also UL and CSA approved. Radio specific enclosures are available (not included) with this ultra slim Samlex switching power supply.
AC Input Voltage Range
115 V, 230 V
Maximum Continuous Amperage
30 A
Maximum Intermittent Amperage
35 A
Ripple Voltage
50 mV PtP
Item Width
7.3 in
