Product Description

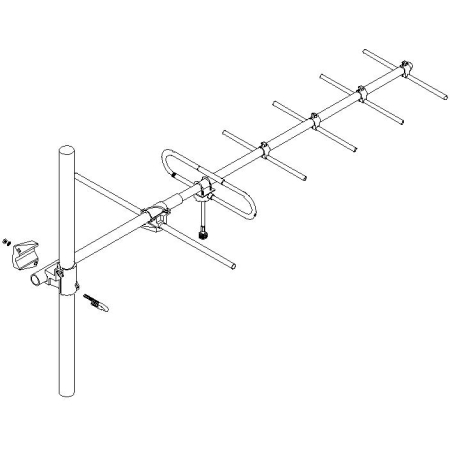

167-174 MHz 9.5dB Yagi - The SY206 antenna consists of a six-element yagi of outstanding durability and performance. All elements including the folded dipole are maintained at DC Ground potential for lightning protection. All elements on this antenna are attached to the boom with solid cast aluminum clamps. This highly versatile antenna is supplied as a standard mount yagi, or, as an endboom mounted unit. As with other yagis, this VHF antenna is available in multiple-unit arrays for added gain. Horizontally or vertically parallel kits of ‘H’ frames can readily be supplied to mount two or four yagis with a common feed.
Maximum VSWR
1.5:1
Type of Hardware Included
U-bolts
Specific Frequency
167-174 MHz
Type of Jumper Included
Coax Jumper with N Male
Vertical Beamwidth
46 deg
RF Connectors
N Male
Maximum Power
200 W
Maximum Rated Wind Velocity
135
Horizontal Beamwidth
56 deg
Lightning Protection
DC Ground
Item Weight
12.5 lb
