Description
Description
Manufacturer
Sinclair Technologies
Product Description

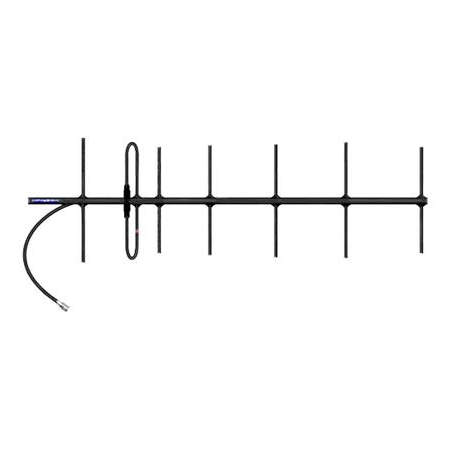

403-430 MHz 10dBd 7 Element Yagi Antenna
Vertical Beamwidth
41 deg
Item Length
44 in
Maximum Rated Wind Velocity
180 mile/h
Maximum VSWR
1.5:1
Item Weight
5 lb
Item Height
14.3 in
Item Width
3 in
Lightning Protection
DC Ground
Connector Placement
Pigtail
Gain dBd
10 dBd
Horizontal Beamwidth
55 deg
Jumper Included
Yes
Maximum Power
250 W
Type of Hardware Included
Clamp115
RF Connectors
N Male
