MPN: SG238-SF1SNM
BRAND: Sinclair Technologies
PRODUCT TYPE: Base Antenna
SKU: 19176

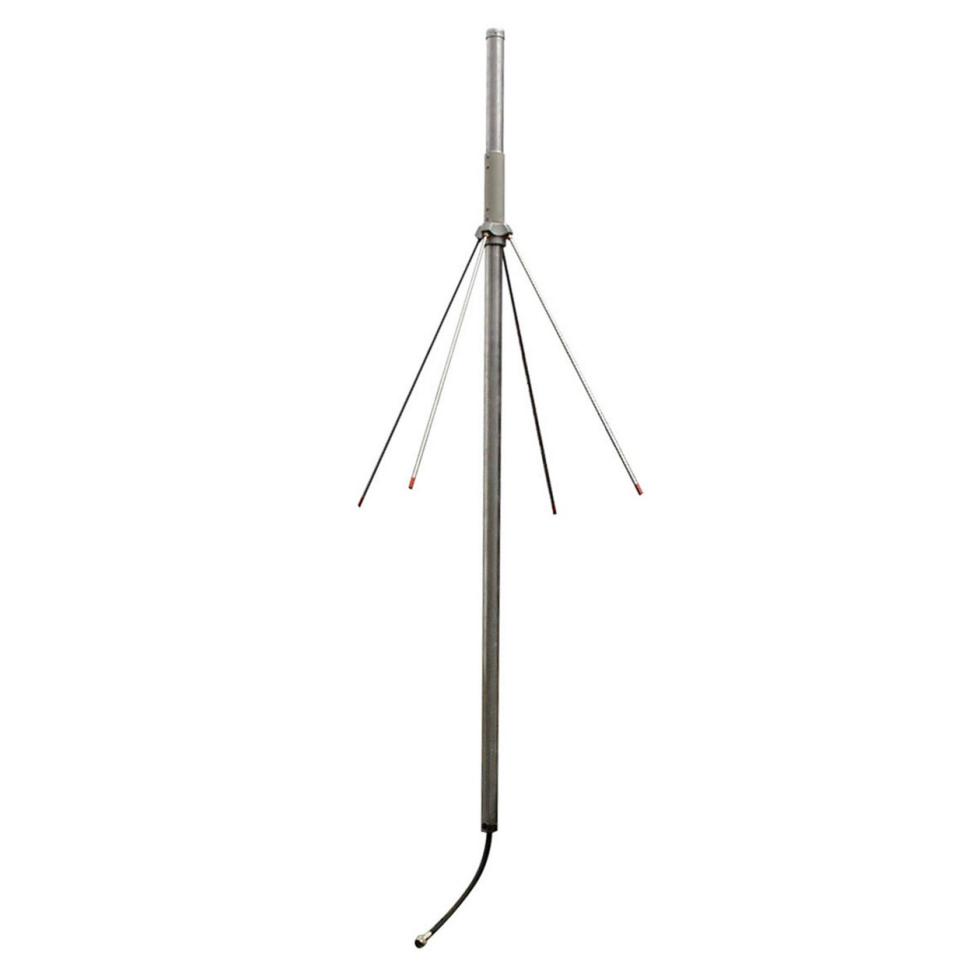

Sinclair Technologies SG238-SF1SNM

118-138 MHz Omni-Directional Aviation Band Base Antenna, Includes coax cable harness with N Male termination

$639⁹⁵

Shipping calculated at checkout.

DOCUMENTS

Specs

SINCLAIR TECHNOLOGIES SG238 SF1SNM SPECS DATASHEET

Description

Manufacturer

Sinclair

Model #

SG238-SF1SNM

Product Description

118-136 Unity Omni Antenna

Product Narrative

Low cost omnidirectional antenna. Wide bandwidth. Unity gain. Constructed of selected aluminum alloy and stainless steel.

Specific Freq. (MHz)

118-136 MHz

Gain (dB)

Unity

Maximum Input Power (Watts)

250

Bandwidth >1.5 VSWR

36

Vert. Beamwidth (-3dB)

71 Deg.

Lightning Protection

DC Ground

Direct Termination

Includes coax cable harness with N Male termination

Overall Length

5.58'

Rated Wind Velocity (MPH)

125

Mount Hardware

Two clamps

Weight

21.5 Lbs.

Warranty

6 Years
