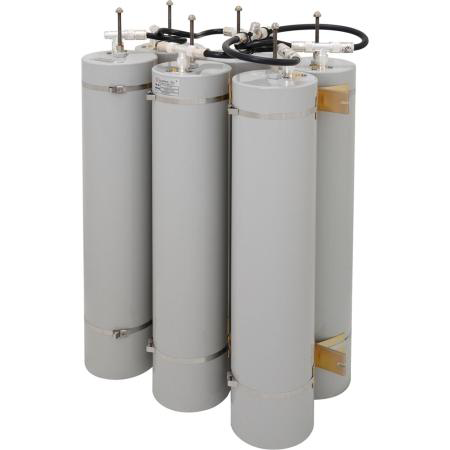

TeleWave TPRD-1556

MPN 1505SKU 14274Product type Radio Accessory

6 cavity 144-174 MHz duplexer with 400 kHz separation and 100 dB isolation, rated 350W with N female ports

Regular price $5,49283
Ships Separately: this item requires its own package


Documents

Key Specifications

Frequency Range
144-148 MHz, 148-156 MHz, 156-164 MHz, 164-174 MHz

Product details

Manufacturer

Telewave, Inc.

Mfg. Model No.

TPRD-1556

Product Description

144-174 MHz Duplexer

Type

Pass/Reject Duplexer

Freq. Range (MHz)

144-174

Application

A duplexer allows a transmitter and receiver to operate simultaneously with a single antenna. A duplexer is a primary component of a repeater system.

Product Narrative

Pass/reject duplexer. Adjustable insertion loss and notch.

Min. Seperation (MHz)

0.400

Maximum Input (Watts)

350

Insertion Loss (Tx/Ant-dB)

2.0

Insertion Loss (Rx/Ant-dB)

2.0

Isolation Rx (Notch-dB)

100

Isolation Tx Side

100

Connectors

N Female

No. of Cavities/Size

6 (5")

temp. Range deg-C

-30 to +70

Maximum VSWR @ 50 Ohms

1.5:1

Tuning Method

Field Tune Yourself or Have our certified technicians Tune it for you FREE OF CHARGE

Size (HxWxD")

11 x 19 x 28

Finish

Gray

Comment

Specify Transmit and Receive frequencies in notes section at check out - A good phone number must be provided to verify order

Customer

What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout

Mfg. Warranty

1 Year
