Description
Description
Manufacturer
Telewave, Inc.
Type
Pass/Reject Duplexer
Product Description

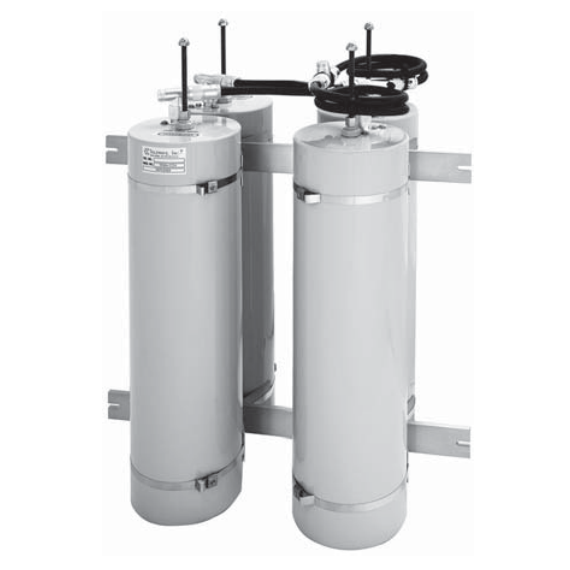

The Telewave Model TPRD4554 duplexer allow simultaneous operation of a transmitter and receiver into a common antenna. These pass-reject duplexers are ideal for systems with very close frequency spacing of 1 MHz or more. The Telewave TPRD-4554 has two ¾ -wave pass-reject cavities in the transmitter and receiver sections.
Freq. Range (MHz)
400-512 MHz
Min. Seperation (MHz)
1 MHz
Maximum Input (Watts)
350
Connectors
N Female
No. of Cavities/Size
4
temp. Range deg-C
-30 to +70 deg Celcius
Maximum VSWR @ 50 Ohms
1.2:1
Finish
Gray Enamel
Customer
What is the Transmit Frequency? What is the Receive Frequency? Specify in notes at checkout
Mfg. Warranty
1 Year
