Description
Description
Manufacturer
Times Microwave Systems
Model #
LMR®-240-ULTRAFLEX-FR
Product Description

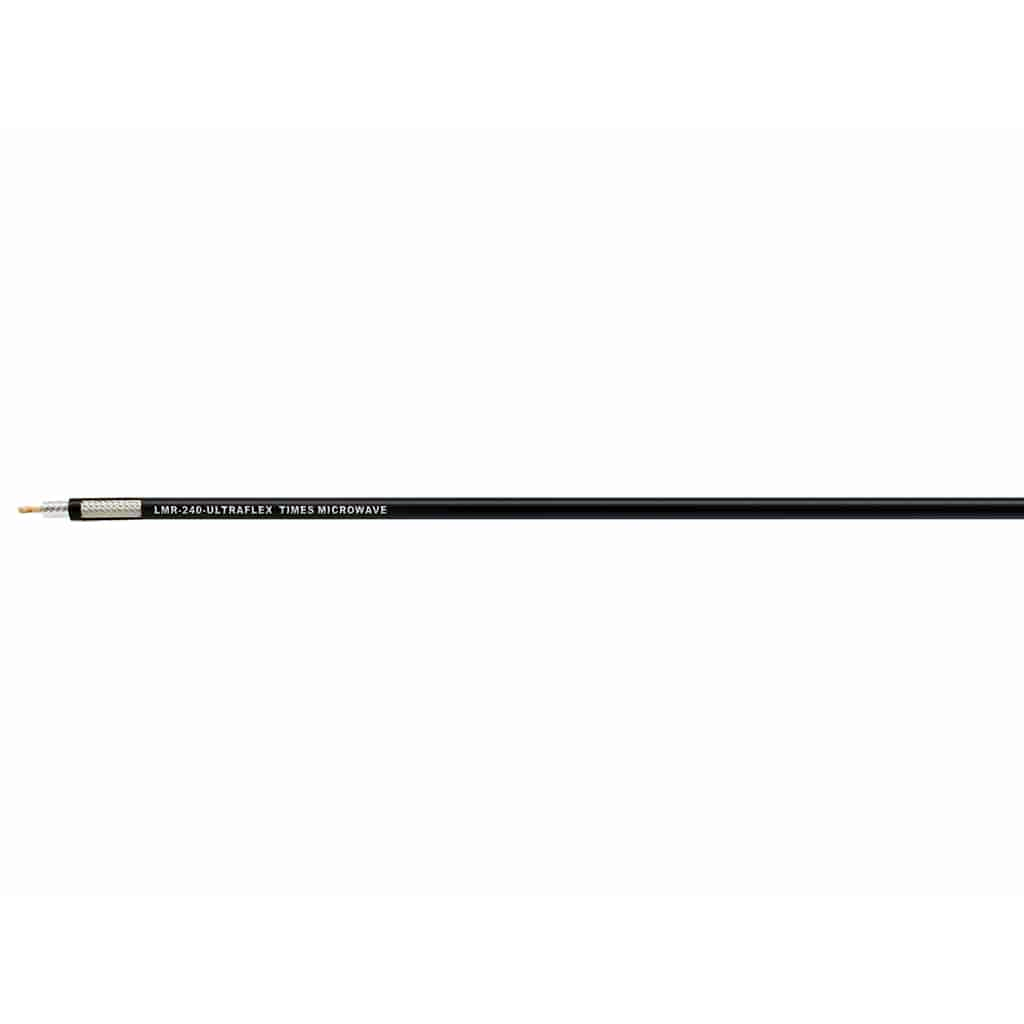

TIMES MICROWAVE's LMR®-240UF-FR ultraflex low-loss, fire retardant LMR®-240 coaxial cable has a very flexible PVC jacket for use in mobile antenna applications. This braided coax cable offers similar performance compared to corrugated copper cables but provides high flexibility and simplified connectorization.
The 1/4 in 50 Ohm coax cable has a stranded bare copper center conductor. Low-loss is achieved because of the 90 percent braided shield. A foam polyethylene serves as insulation.
This LMR®-240 transmission line can be used in almost any application where handing characteristics, improved shielding, and low-loss is required. The LMR®-240 cable is similar in size to RG8X cables and uses Times TC connectors. The fire retardant jacket is CMR/MPR rated.
the times LMR®-240 ultraflex low-loss coaxial cable is available in bulk and is priced per foot.
The 1/4 in 50 Ohm coax cable has a stranded bare copper center conductor. Low-loss is achieved because of the 90 percent braided shield. A foam polyethylene serves as insulation.
This LMR®-240 transmission line can be used in almost any application where handing characteristics, improved shielding, and low-loss is required. The LMR®-240 cable is similar in size to RG8X cables and uses Times TC connectors. The fire retardant jacket is CMR/MPR rated.
the times LMR®-240 ultraflex low-loss coaxial cable is available in bulk and is priced per foot.
Cable Type
LMR®-240UF-FR
RF Impedance
50 Ohms
Center Conductor Material
Copper
Center Conductor Diameter
.056 in
Center Conductor Construction
Stranded
Jacket Color
Black
Dielectric Insulation
FEP
Jacket Material
PE
Other Spec
UltraFlex & Fire Retardent Cable
Outer Conductor Material
Aluminum
Reel Type
B
Strip Tool
12838, or 63427
VOP
84 %
