Manufacturer
Tram
Product Description

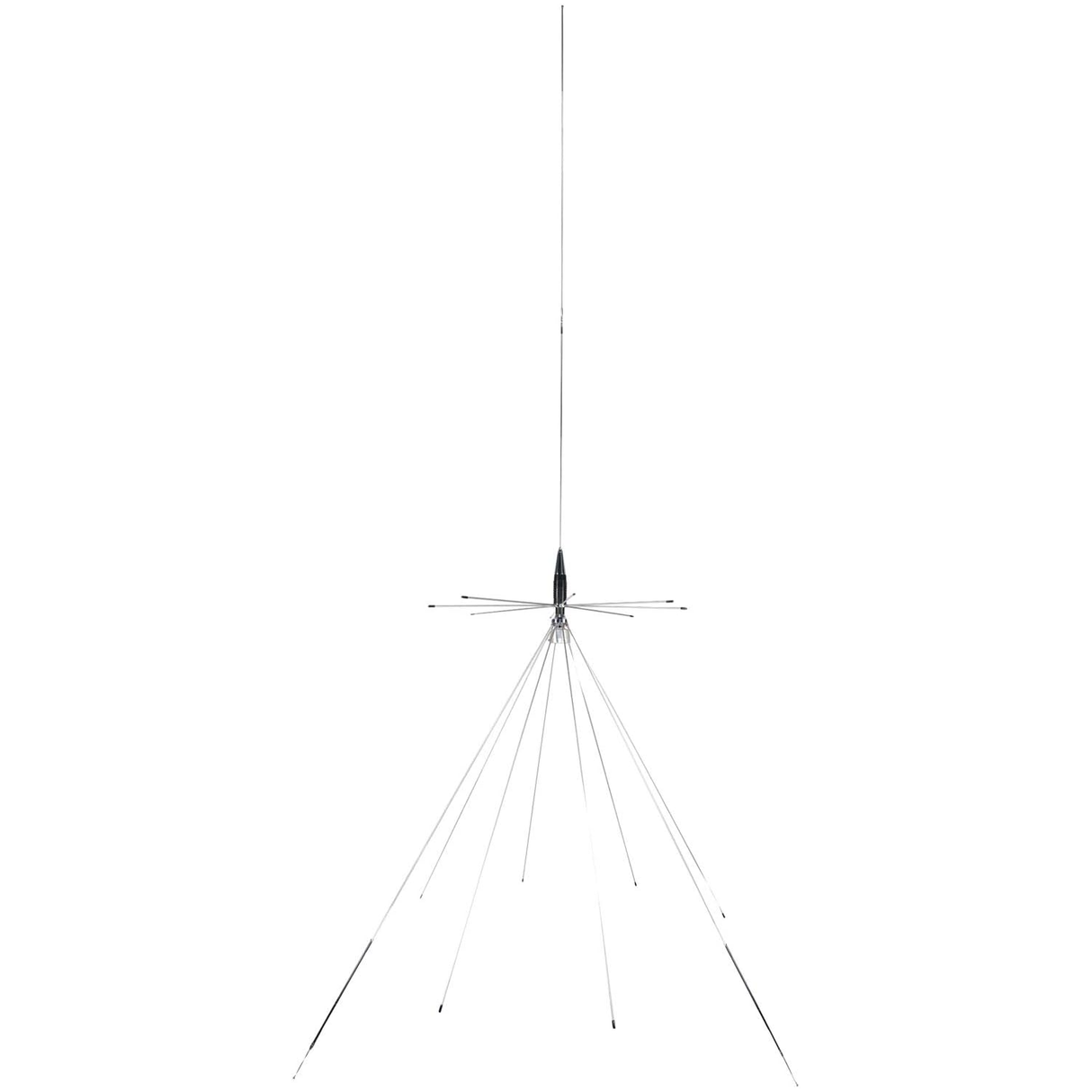

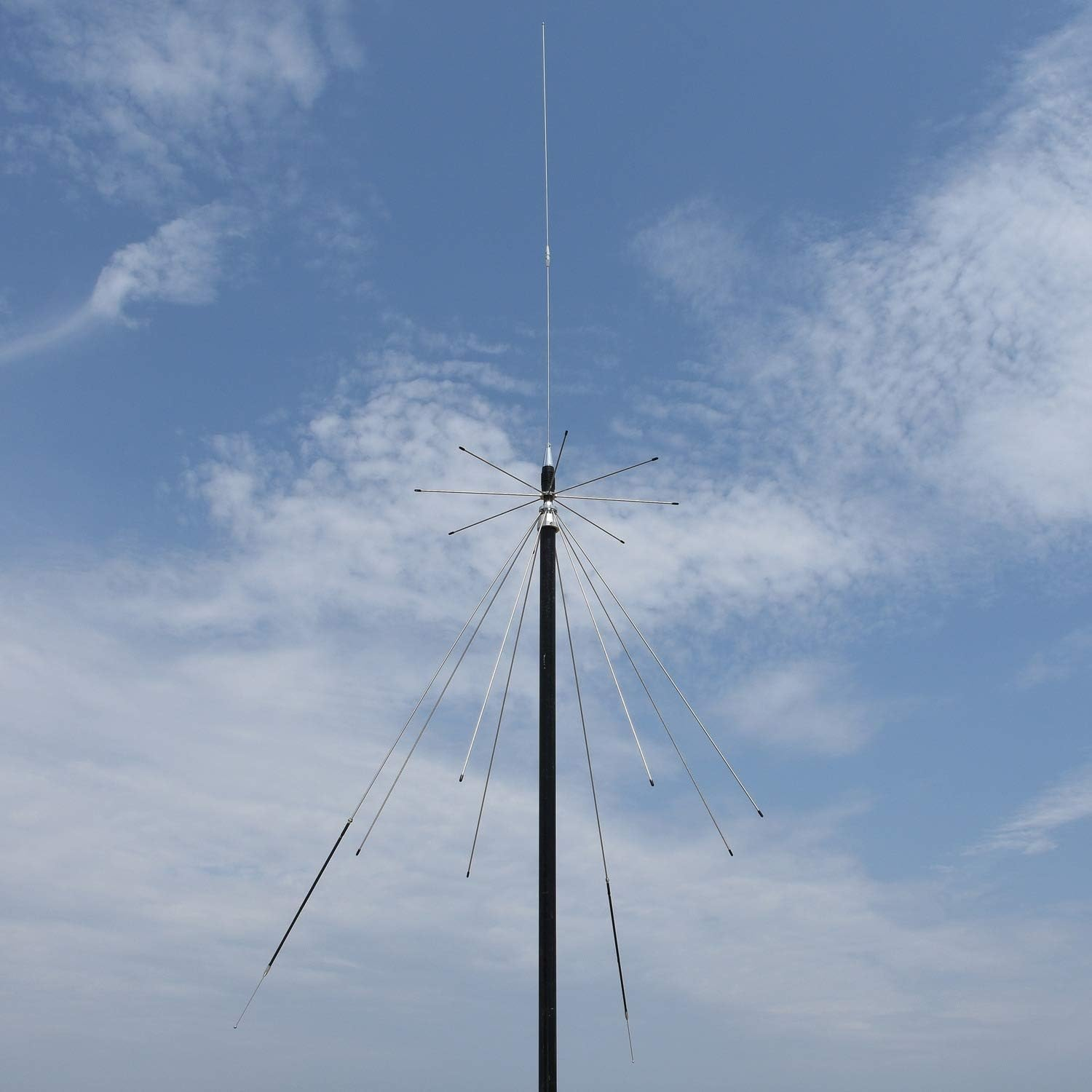

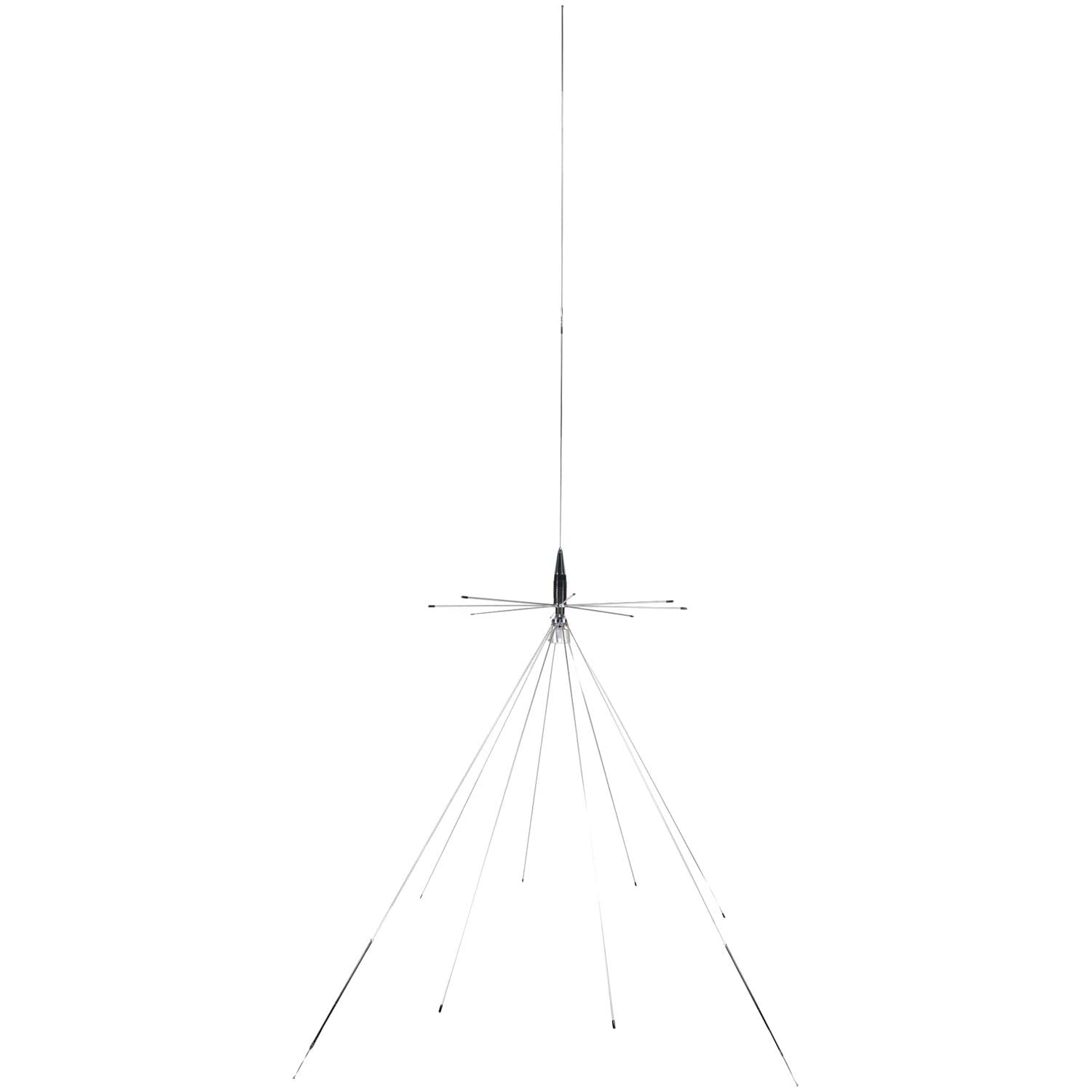

Scanner Base Antenna
Description
Wide Band Receive from 25 - 1300 MHz. Rust Free Stainless Steel Construction. 1 3/8" Maximum Mast Diameter required for installation (Not Included). Transmit Bands are 26-27, 46-49, 72-144, 220, 440, 900 & 1200 MHz
Frequency
25-1300 MHz
Connector

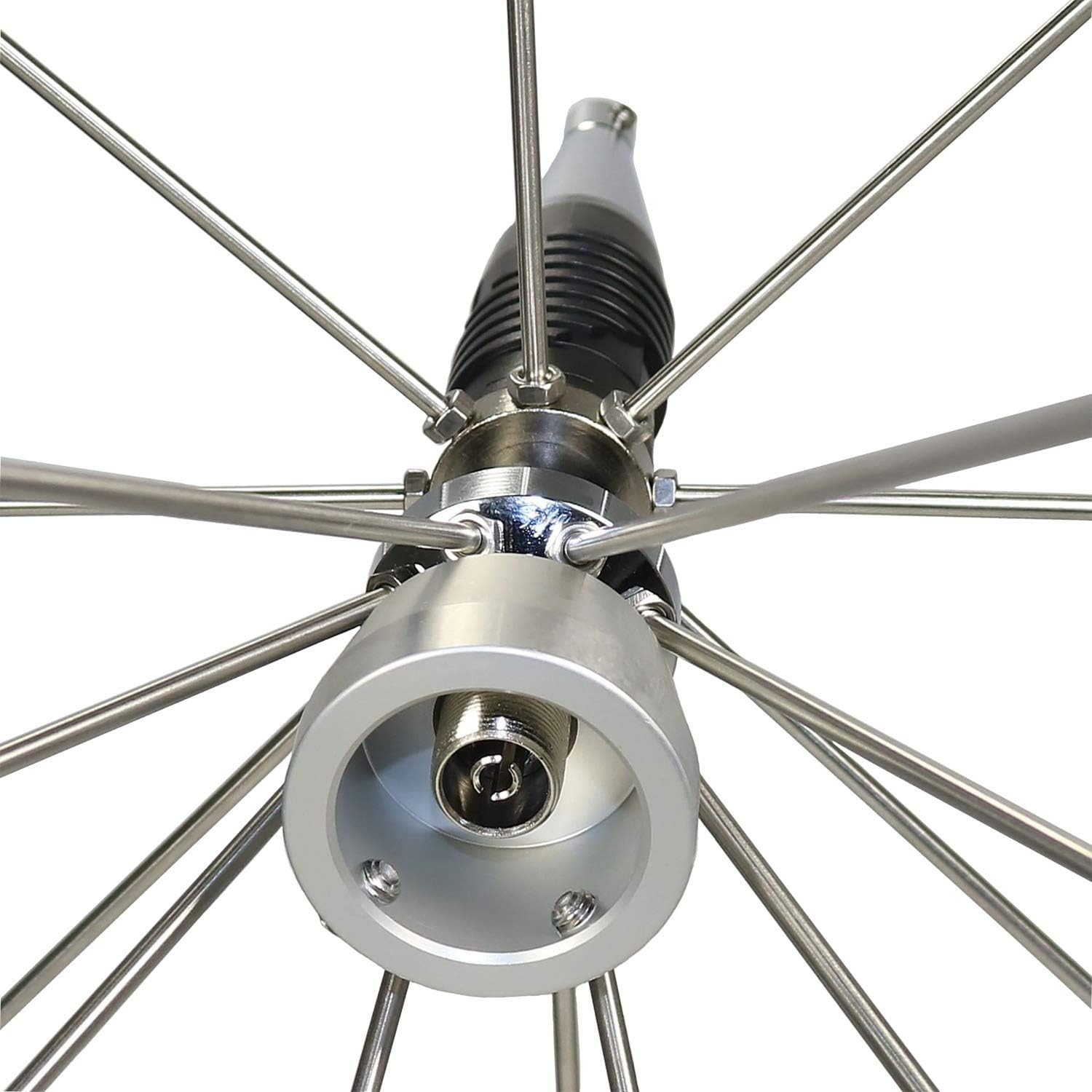

SO-239 (UHF Female) Cable terminated with a PL-259 connector required
Max Power
300 Watts on 26-72 MHz and 200 watts VHF/UHF
Other

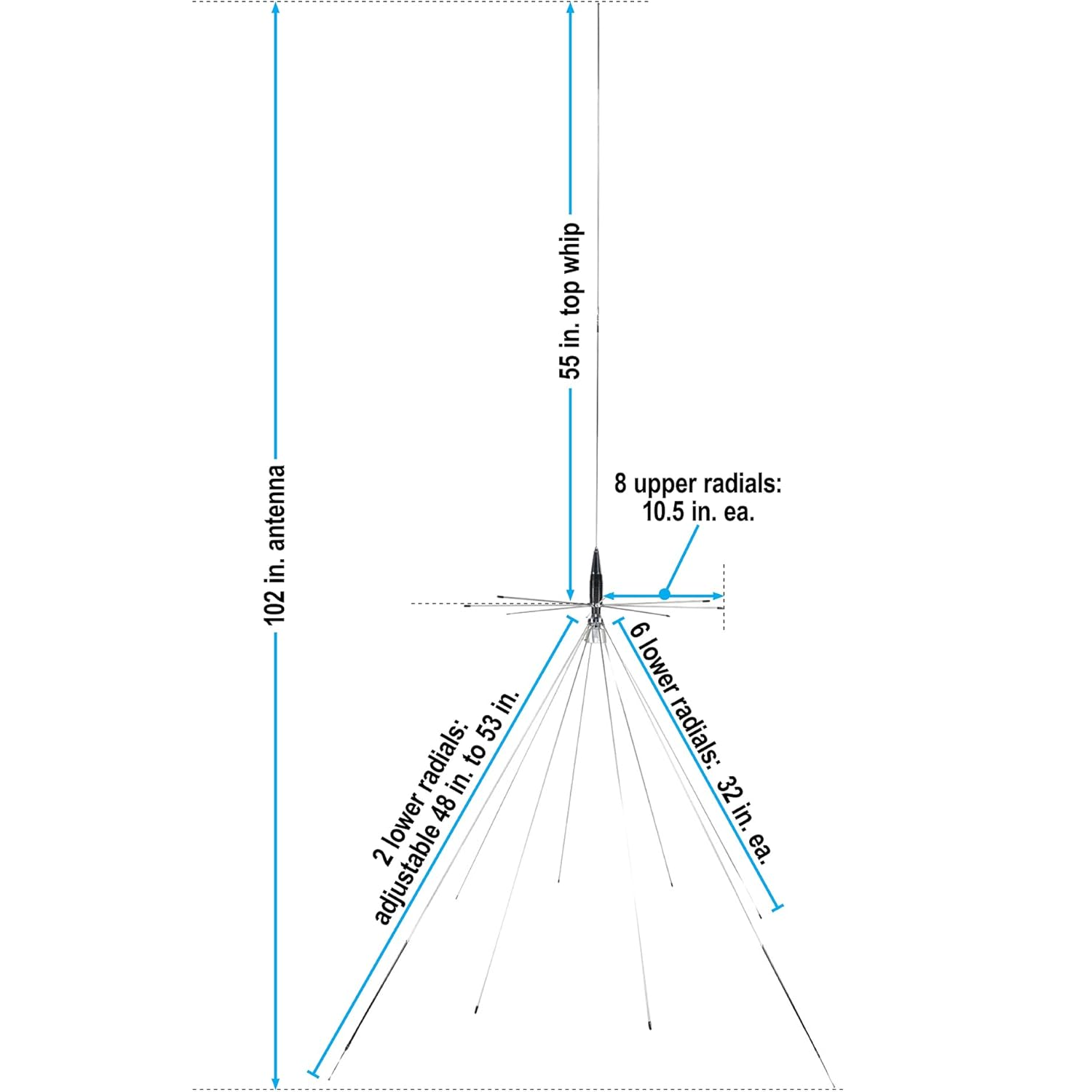

6 Lower Radials (32 inches), 2 Lower Radials (48-52 inches adjustable) & 8 Upper Radials (10 1/2 inches). Top Whip Length = 55 inches
Warranty
1 Year
