Whistler TRX-1
DOCUMENTS
DOCUMENTS
Manual
Specs
Description
Description

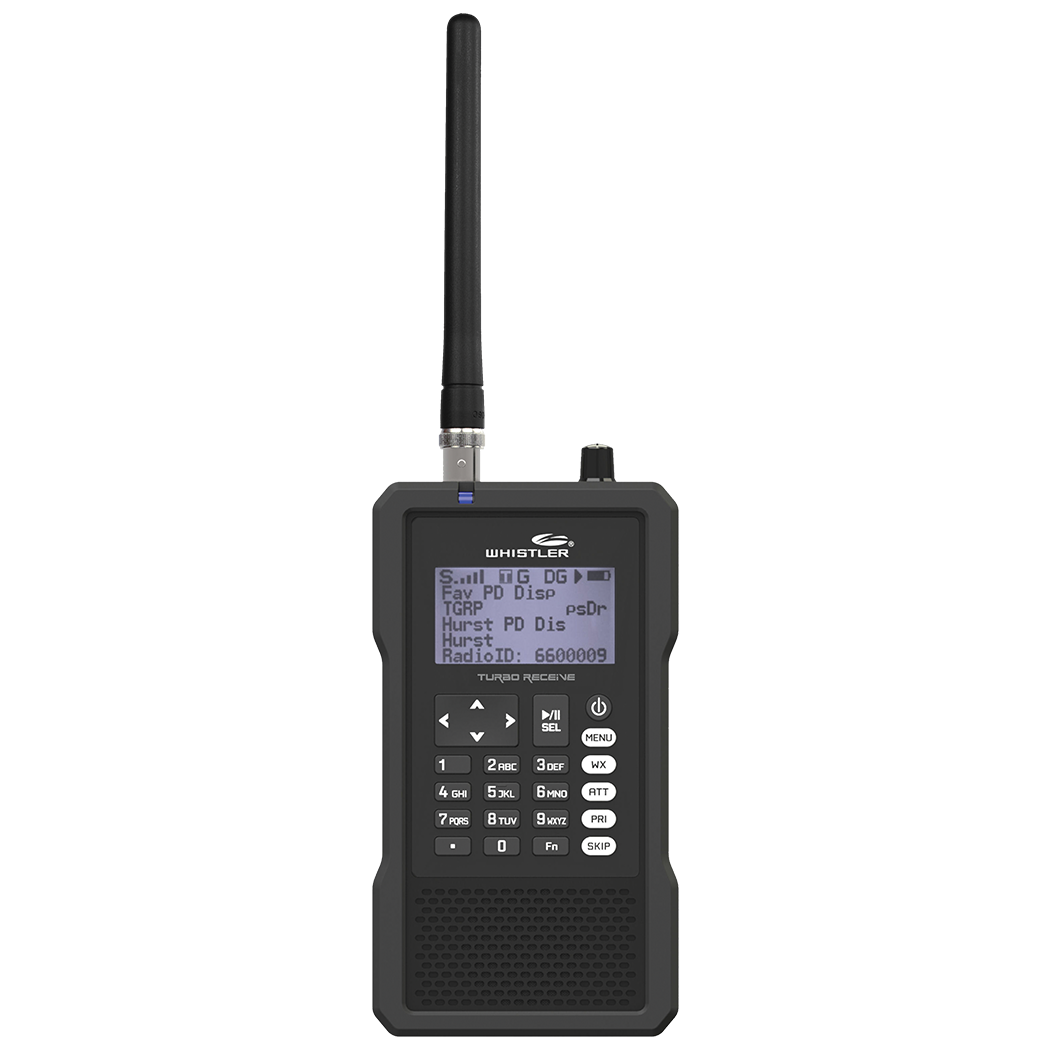

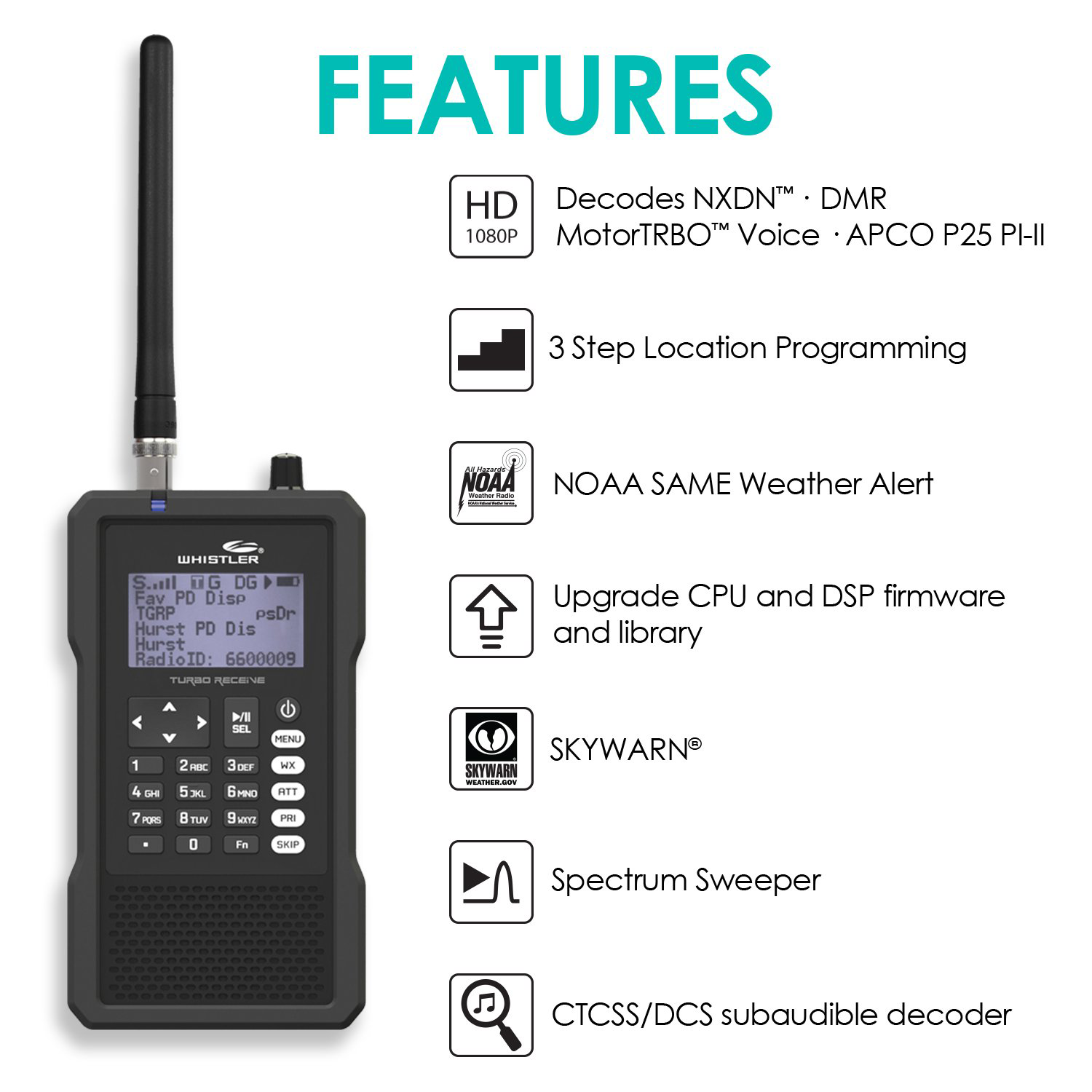

The Handheld DMR/MotoTRBO Digital Trunking Scanner is a huge step forward in scanner technology. This device is a multi-system adaptive digital trunking scanner with Motorola P25 Phase I and II, X2-TDMA, and DMR, making it capable of monitoring a wide variety of unencrypted channels and systems such as conventional DMR, Hytera XPT, MotoTRBO Capacity Plus, MotoTRBO Connect Plus, and MotoTRBO Linked Cap Plus systems, and NXDN..This model features a fully backlit alphanumeric keypad as well as easy-to-use Scan, Pause, Select, and Navigation controls. All USA and Canada services and frequencies are preprogrammed onto the included microSD Card.
- Ability to group stored objects using up to 200 scan lists plus a special SKYWARN scan list; objects can be mapped to as many Scan lists as desired, giving you complete flexibility for grouping objects and selecting groups in any combination for scanning
- Programmable audible alarms can be configured to sound when certain scannable objects are active
- Programmable tri-color LED displays thousands of colors that can be used to indicate different types of activity or activity on special channels; ability to program color sequences with multiple colors for special alerts
- Ability to record received audio from selected objects and searches to microSD Card
- Detects and masks digital voice audio, and decodes RadioID/TalkgroupID data embedded in voice packets
- Quickly sweeps its frequency ranges for transmissions from nearby sources and when a nearby transmission is found, it automatically tunes to that frequency and receives the traffic
- Backlight can be programmed to flash with custom flash patterns when certain objects are active, providing another way of alerting you when important radio traffic is present
- NOAA SAME weather alert with dedicated SKYWARN button

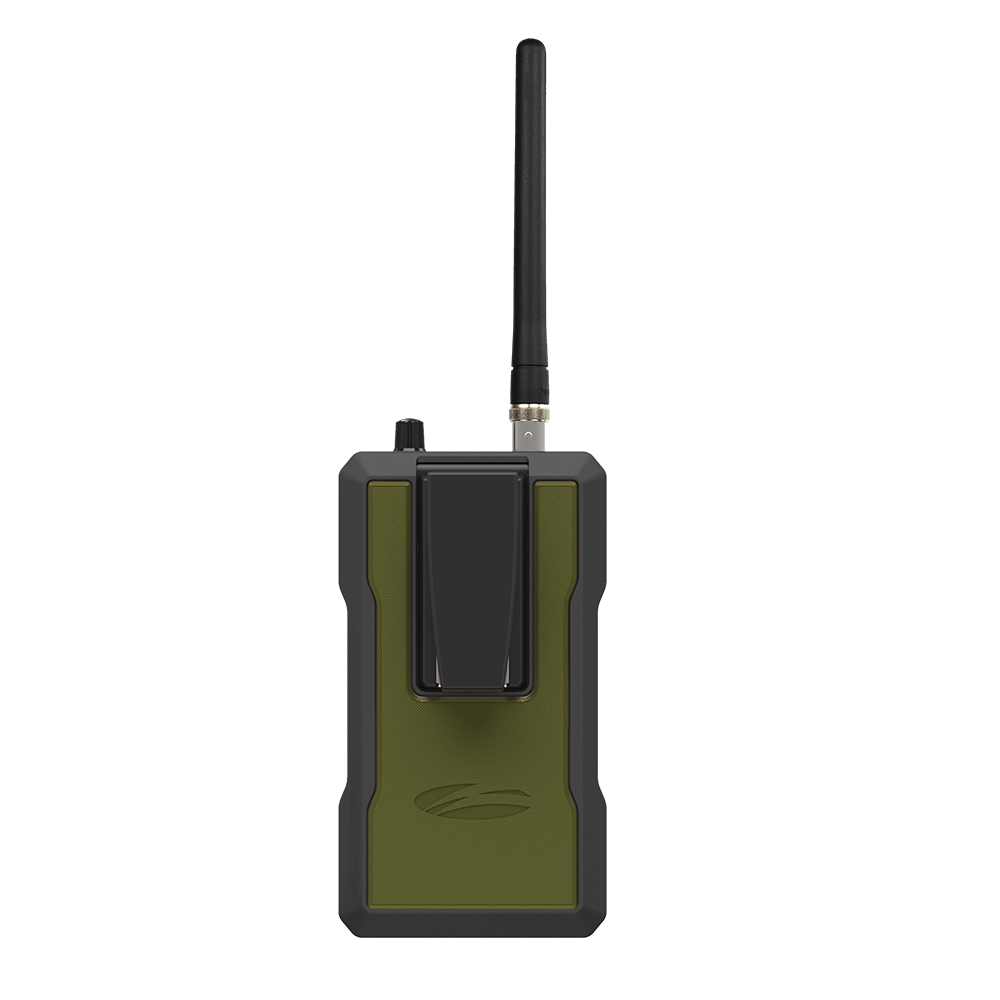

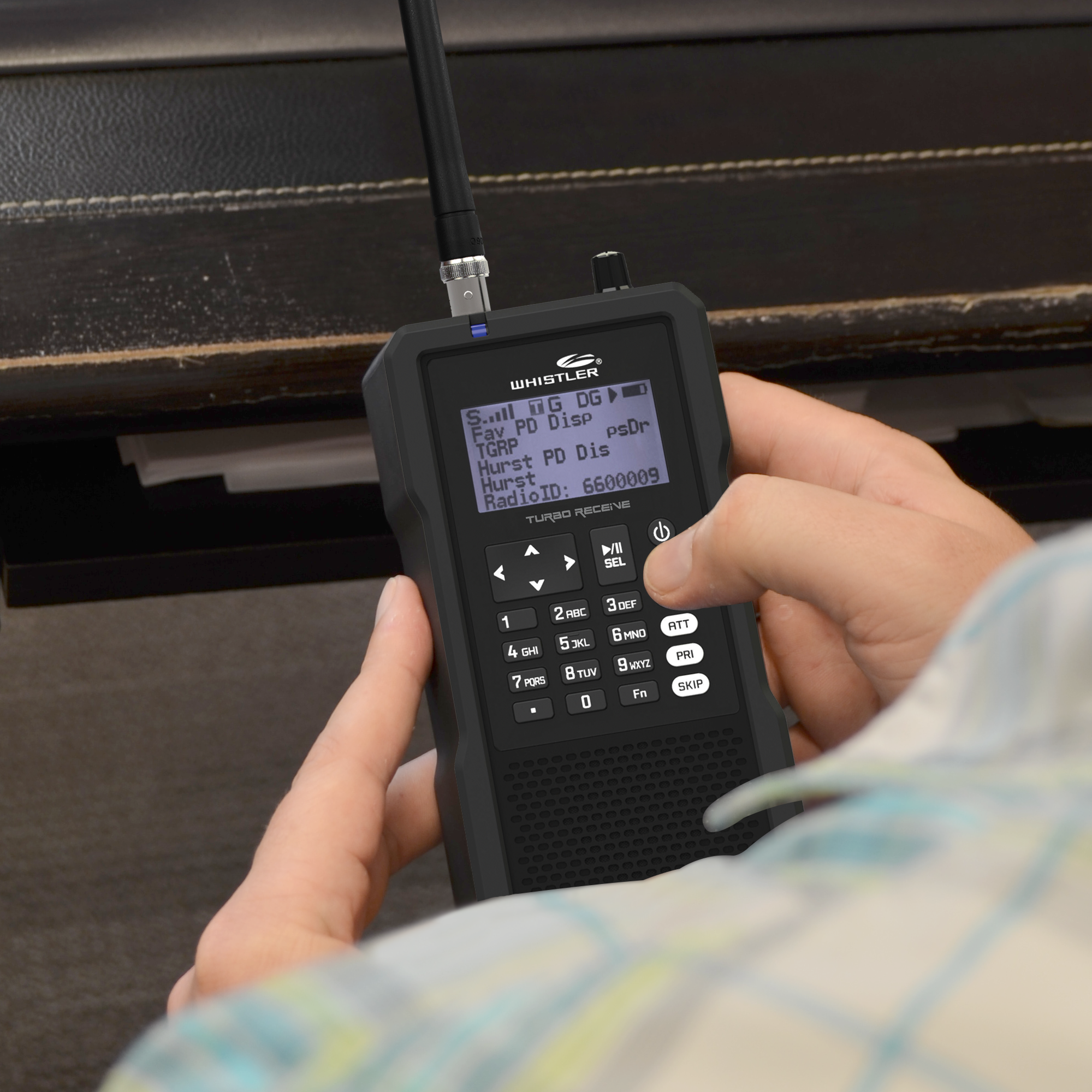

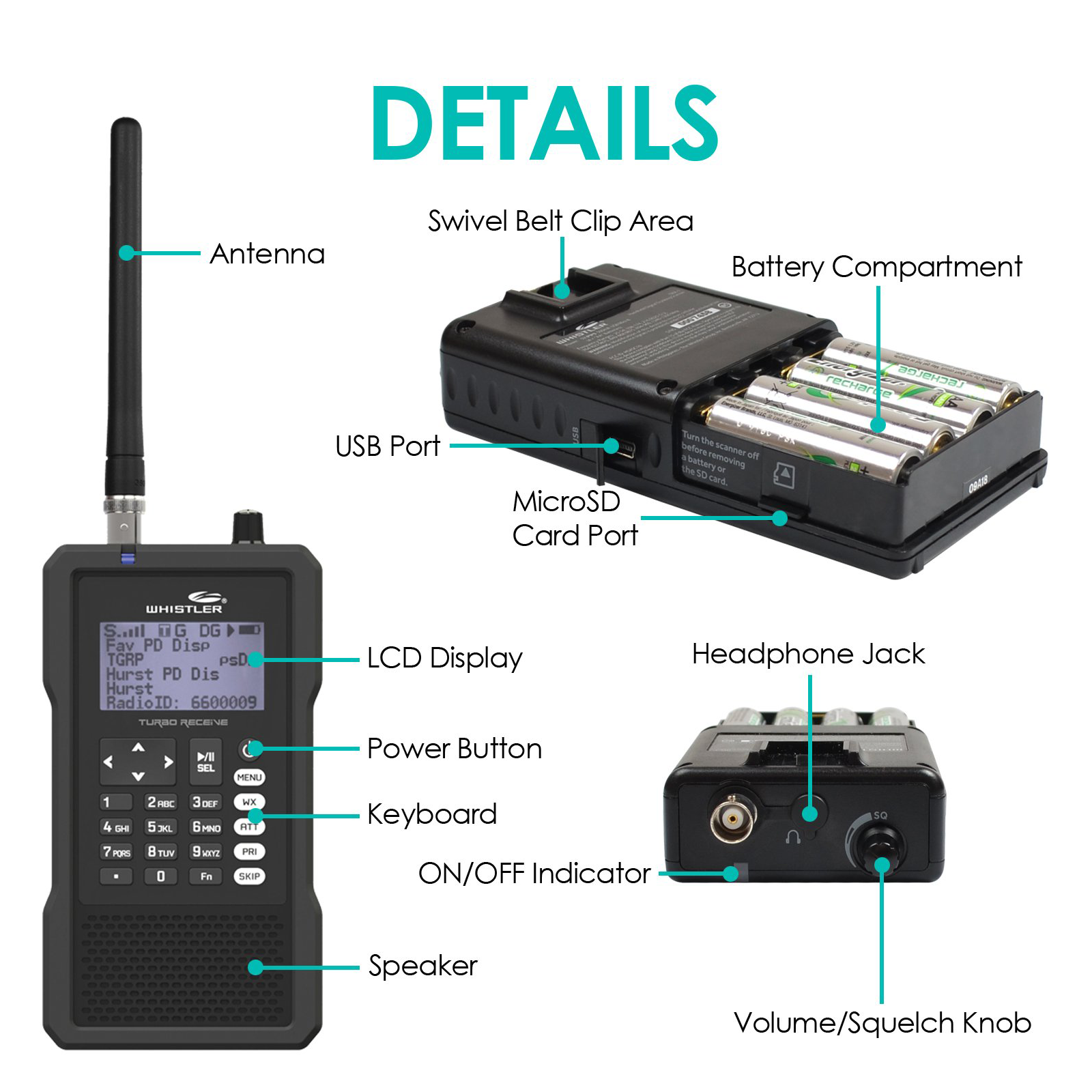

- Slim, compact case design with textured exterior finish and large speaker; designed for durability, 1-handed operation, and ease of use
- Only for use on Windows operating systems

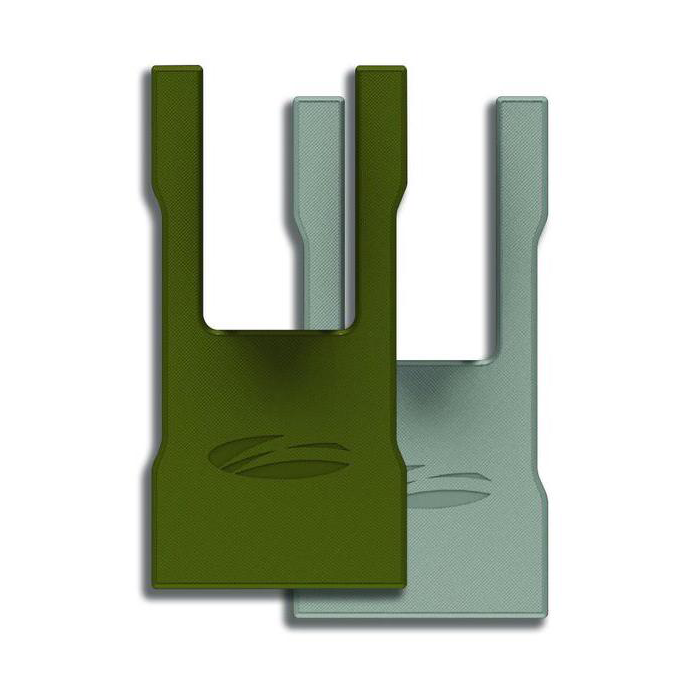

- Includes antenna, swivel belt clip, USB cable, protective case, 2 inserts, microSD Card, user guide, and quick-start guide
