Yaesu FT-3165RASP
DOCUMENTS
DOCUMENTS
Brochure
Description
Description
Radio Includes:

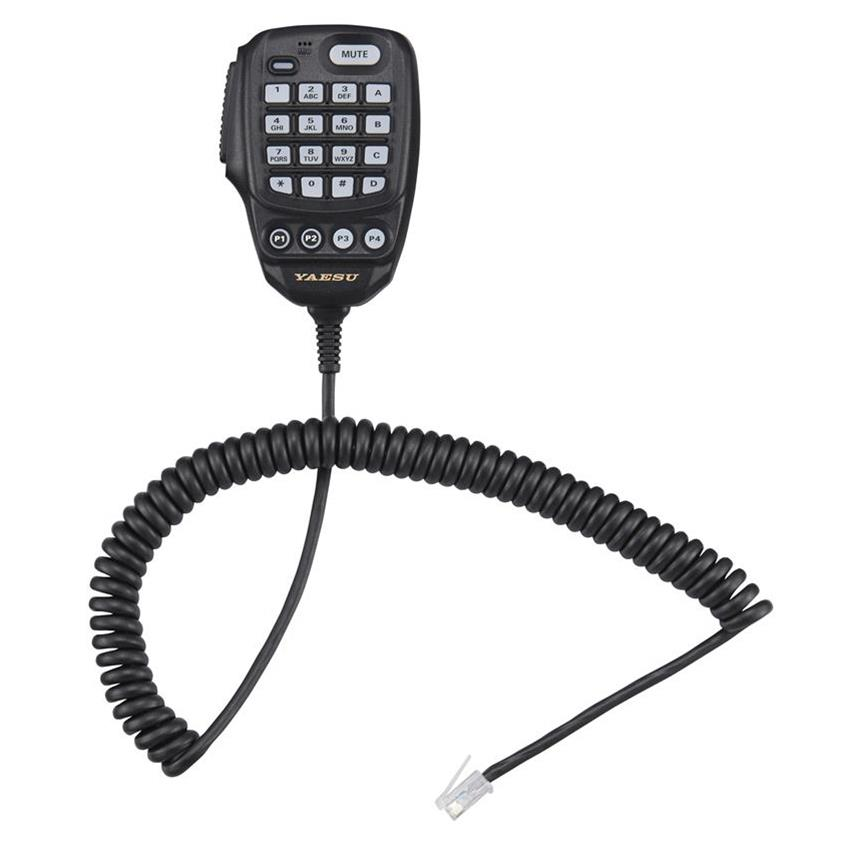

- SSM-85D DTMF Keypad Microphone

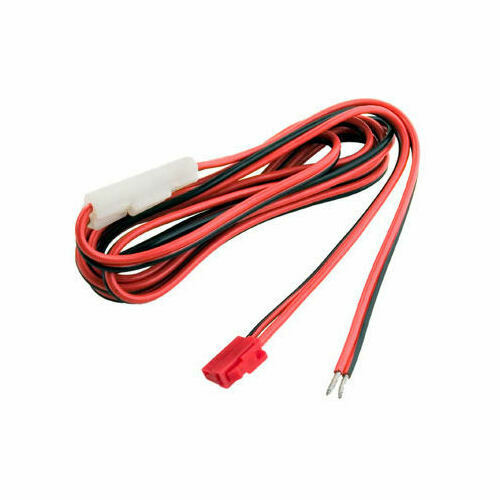

- DC Power Cable w/Fuse

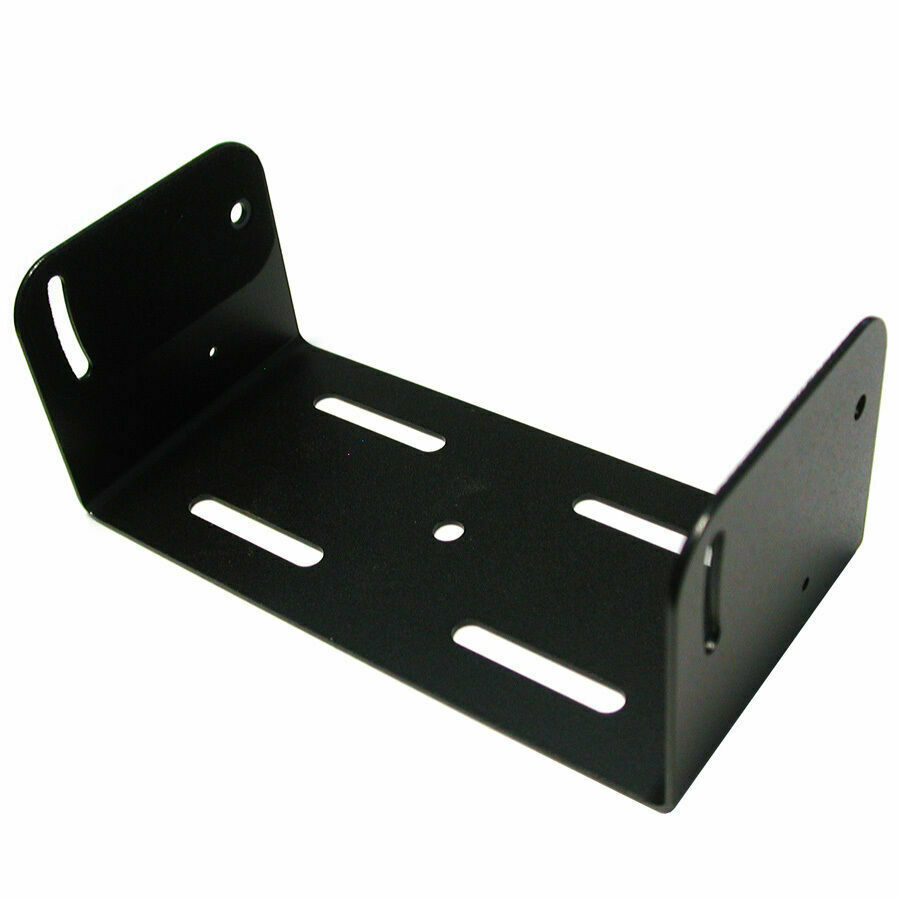

- Mounting Bracket
- USB Cable
- Spare Fuse 25A
- Necessary Hardware
- 3 Year Manufacturers Warranty
Items needed:
antenna designed for your particular operating frequency plus mount and cable terminated with a PL-259 connector.

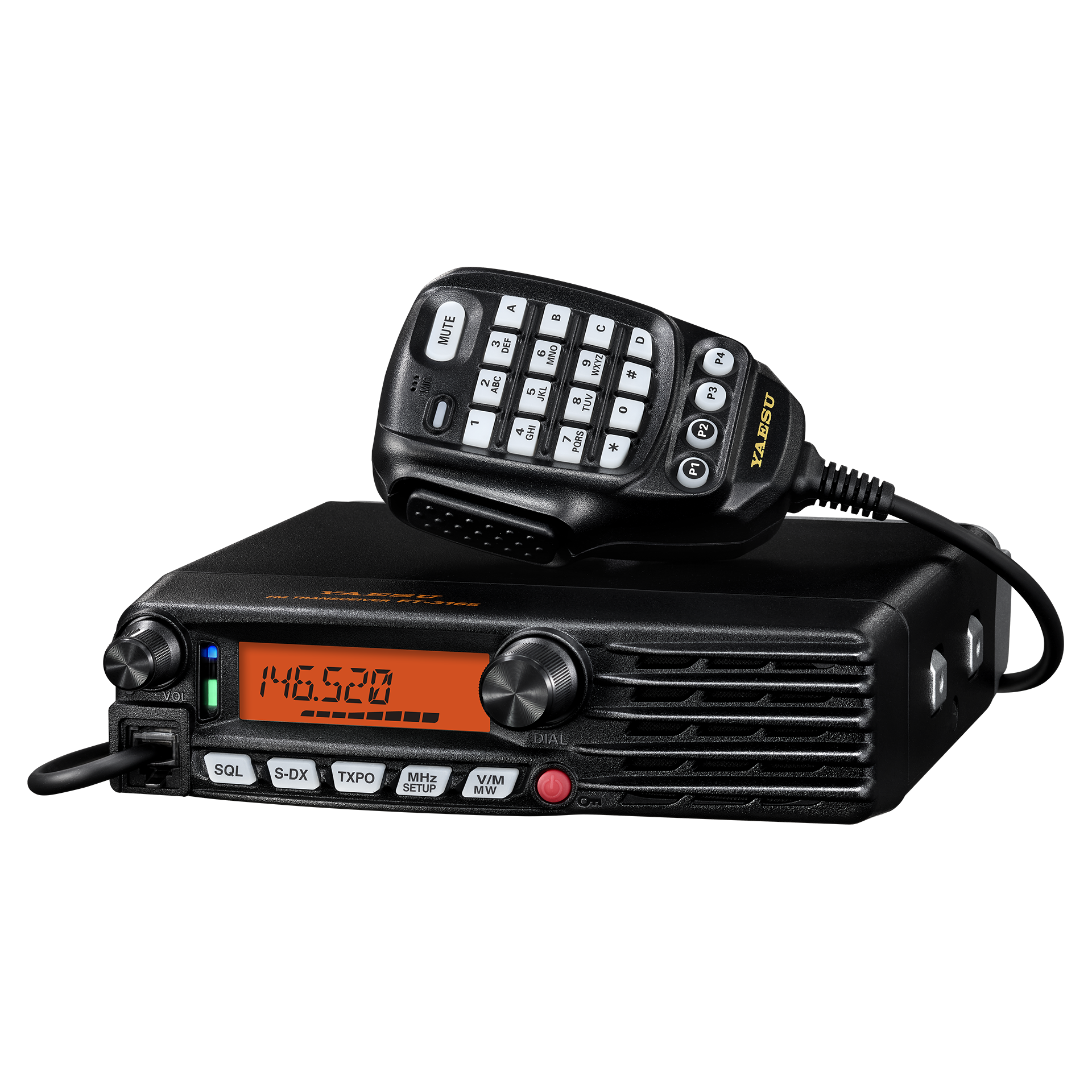

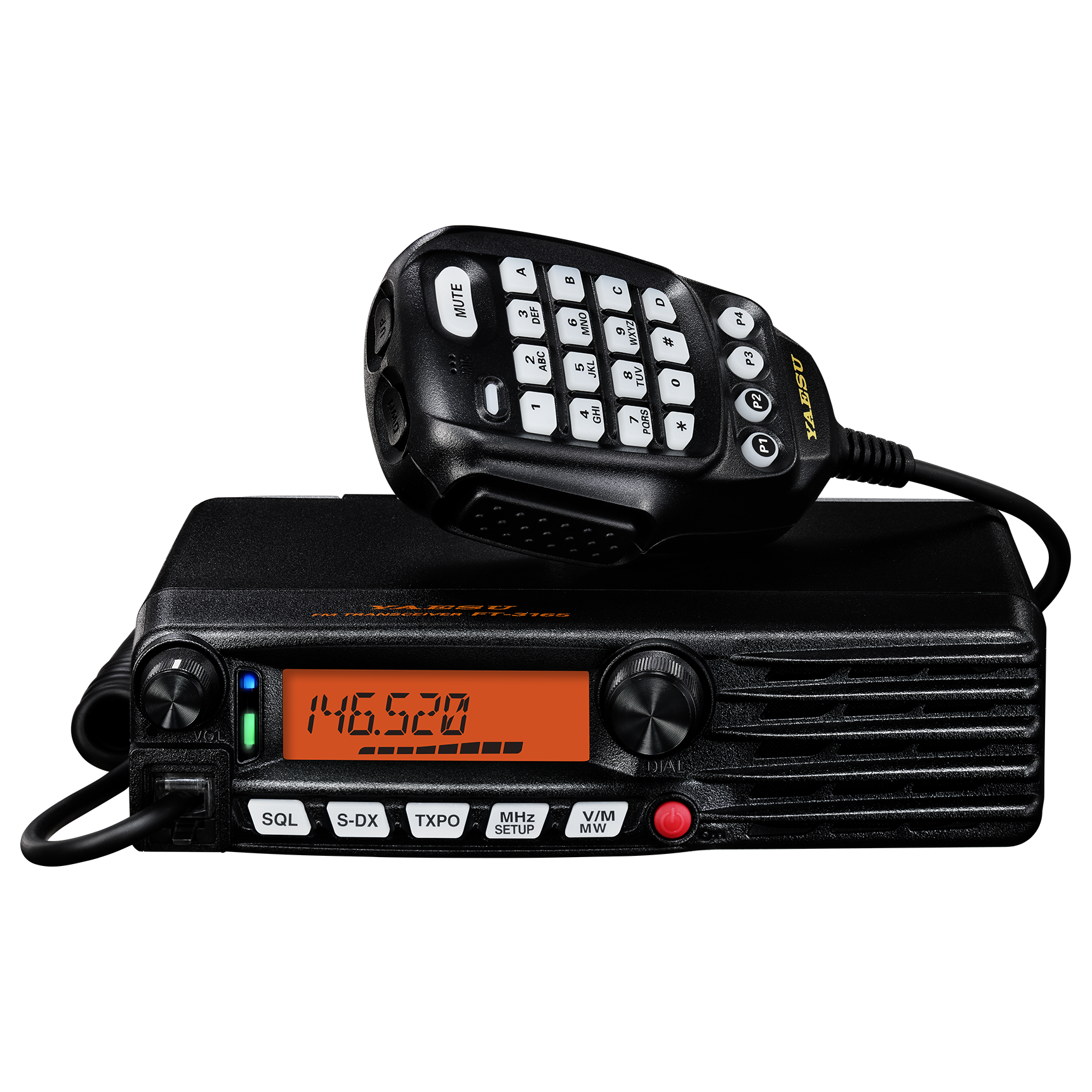

65W FM Mobile Transceiver
With the New Evolving Super-DX and Audio Digital Signal Processor
The FT-3165RASP is a compact 2-meter mobile transceiver with solid basic features configuration and mechanical toughness. The power output is 65W (selectable 65W / 30W / 5W) and its efficient cooling system with the FACC: Funnel Air-Convection Conductor (Wind Tunnel) ensures stable and reliable power.
New front speaker provides 5W of loud audio and has been tuned for improved sound quality. With the optional MLS-100 external speaker, the FT-3165RASP transceiver supports uninterrupted communication even in a noisy environment.
The Super-DX function increases the receiver sensitivity and improves weak signal reception. The new ASP: Audio Digital Signal Processing Unit is also activated when the Super-DX key is pressed. The Super-DX with the ASP ensures comfortable audio quality of weak signals and expands the communication range.
In the MANUAL mode, transmit and receive stay on the manually selected channel. When there is no signal on the manually selected channel, the bar graph will display the activity of the other PMG channels.
Some other convenient features of the FT-3165RASP are: Large-capacity of 220 Memory channels with Alpha-numeric 8-character labels, Keypad entry of operating frequencies from the supplied DTMF microphone, Versatile Scan features such as Preferential Memory Scan, VFO Scan, Priority Channel Scan (Dual Watch), CTCSS / DCS Encode/Decode, Separate Transmit offset Frequency Memories, RF squelch, EPCS (Enhanced Paging & Code Squelch) operation, Display Illumination Adjustment, Automatic Power-Off (APO), Time-Out Timer (TOT), Busy Channel Lock-out (BCLO), and 10 NOAA Weather Broadcast Channels with Weather Alert.
