Rohn 25AG1
Regular price
$67395
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Freight: this item requires LTL shipping
Description
Description

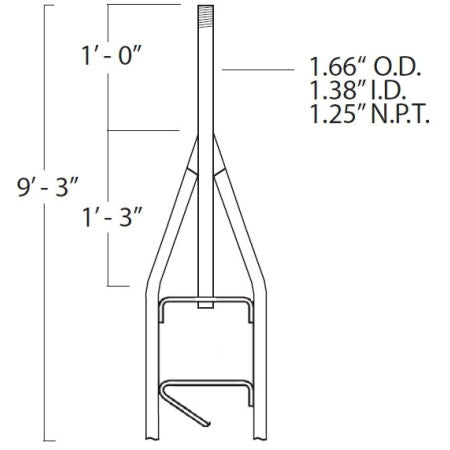

The ROHN R25AG1 25G standard top section features the same 12 ½-in face and 5/16-in solid serpentine Zig-Zag bracing as the standard 25G tower sections and it also comes with a tapered top and integrated mounting pipe. The pipe, measured from the apex of the side rails, measures 1.66-in OD x 10-in and features 1 ¼-in NPT threading at the top.
You can connect the 9-ft 3-in long R25AG1 to any standard ROHN 25G tower section using the included bolts and double-bolted leg connections. The entire section has been completely hot-dip galvanized for years of worry-free corrosion protection and it can be used in guyed, self-supporting and bracketed tower configurations.
Mfg. Part No.
R25AG1
Mfg. Warranty
1 Year
Description
ROHN 25G standard top section with 1.25-in NPT threaded 12-in x 1.66-in mounting pipe
Section Length (ft)
9.25
Leg Size (in)
1.25
Leg Type
Tubular
Leg Connection
Double-bolted slip-fit
Bracing Size (in)
5/16
Bracing Type
Solid serpentine
Wt. (lbs)
31.00
Brace Connection
Welded
Wgt. (kg.)
14.09
