Description

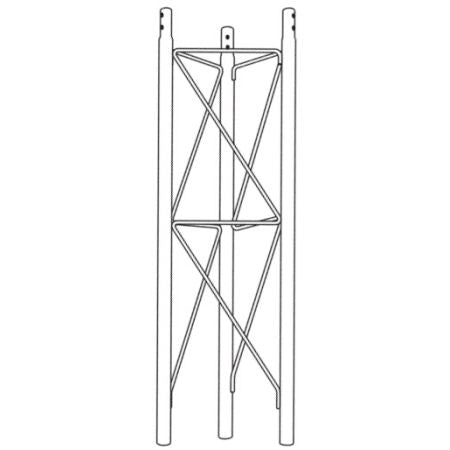

The ROHN R-SB25G short base section is designed to be placed into the ground and embedded in concrete to act as the connection between the tower foundation and the final section in the tower structure. The R-SB25G is 3-ft 4-in long and features the same 12 ½-in face and solid 5/16-in serpentine bracing found in the traditional ROHN 25G tower sections. It is completely hot-dip galvanized after fabrication to provide years of worry free corrosion protection and comes complete with all necessary splice hardware for connection to any standard ROHN 25G tower section.
Mfg. Part No.
R-SB25G
Mfg. Warranty
1 Year
Description
ROHN 25G 3-ft 4-in short base section for use in concrete embedment
Section Length (ft)
3.33
Leg Size (in)
1.25
Leg Type
Tubular
Leg Connection
Double-bolted slip-fit
Bracing Size (in)
5/16
Bracing Type
Solid serpentine
Wt. (lbs)
10.00
Brace Connection
Welded
Wgt. (kg.)
4.55
