Rohn SB25G5
Regular price
$20295
Unit price
Shipping calculated at checkout.
Ships Separately: this item requires its own package
Description
Description

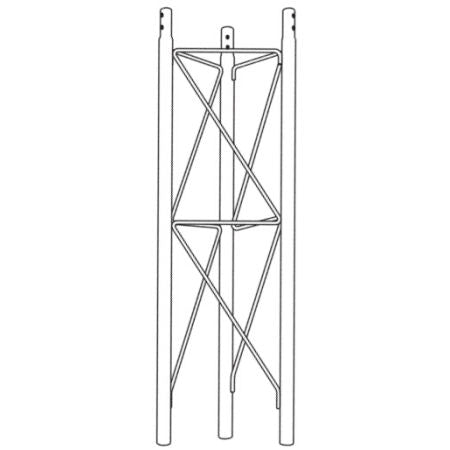

The ROHN R-SB25G5 short base section is designed to be placed into the ground and embedded in concrete to act as the connection between the tower foundation and the final section in the tower structure. The R-SB25G5 is 5-ft long and features the same 12 ½-in face and solid 5/16-in serpentine bracing found in the traditional ROHN 25G tower sections. It is completely hot-dip galvanized after fabrication to provide years of worry free corrosion protection. All necessary splice hardware for connection will be included in the standard ROHN 25G section that connects to the short base.
Mfg. Part No.
R-SB25G5
Mfg. Warranty
1 Year
Description
ROHN 25G 5-ft short base section for use in concrete embedment
Section Length (ft)
5.0
Leg Size (in)
1.25
Leg Type
Tubular
Leg Connection
Double-bolted slip-fit
Bracing Size (in)
5/16
Bracing Type
Solid serpentine
Wt. (lbs)
19.00
Brace Connection
Welded
Wgt. (kg.)
8.64
