Description
Description

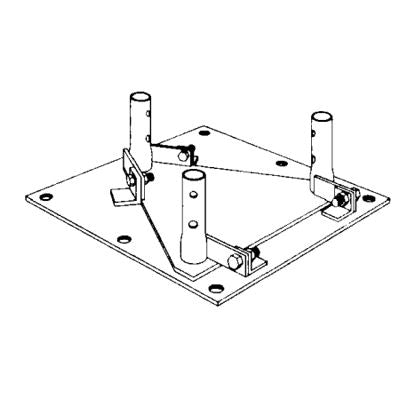

The ROHN R-BPH25G hinged base plate is hot-dip galvanized and comes pre-drilled for use with six (6) ½-in x 12-in J-Bolts (or equivalent) protruding through pad. The 15-in square base plate allows for the tower to be tilted up at the base during installation. The ROHN R-BPH25G can be used in guyed or bracketed applications only and is not recommended for use in self-supporting tower configurations.
J-bolts sold seperately.
Requires four (4) Rohn # R-25JBK concrete base bolts for installation. Base bolts must be ordered separately
Mfg. Warranty
1 Year
Description
ROHN 25G hinged base plate
Wt. (lbs)
23.85
Wgt. (kg.)
10.84
